Using a combination of automatic (robotic), machine, and semi-automatic (GMAW) welding, Do It American MFG produces many different configurations of spool pieces and flanged nipples for natural gas utilities across the country. Our welding processes are qualified to Section IX of the ASME Boiler & Pressure Vessel Code to ensure compliance with federal code requirements.

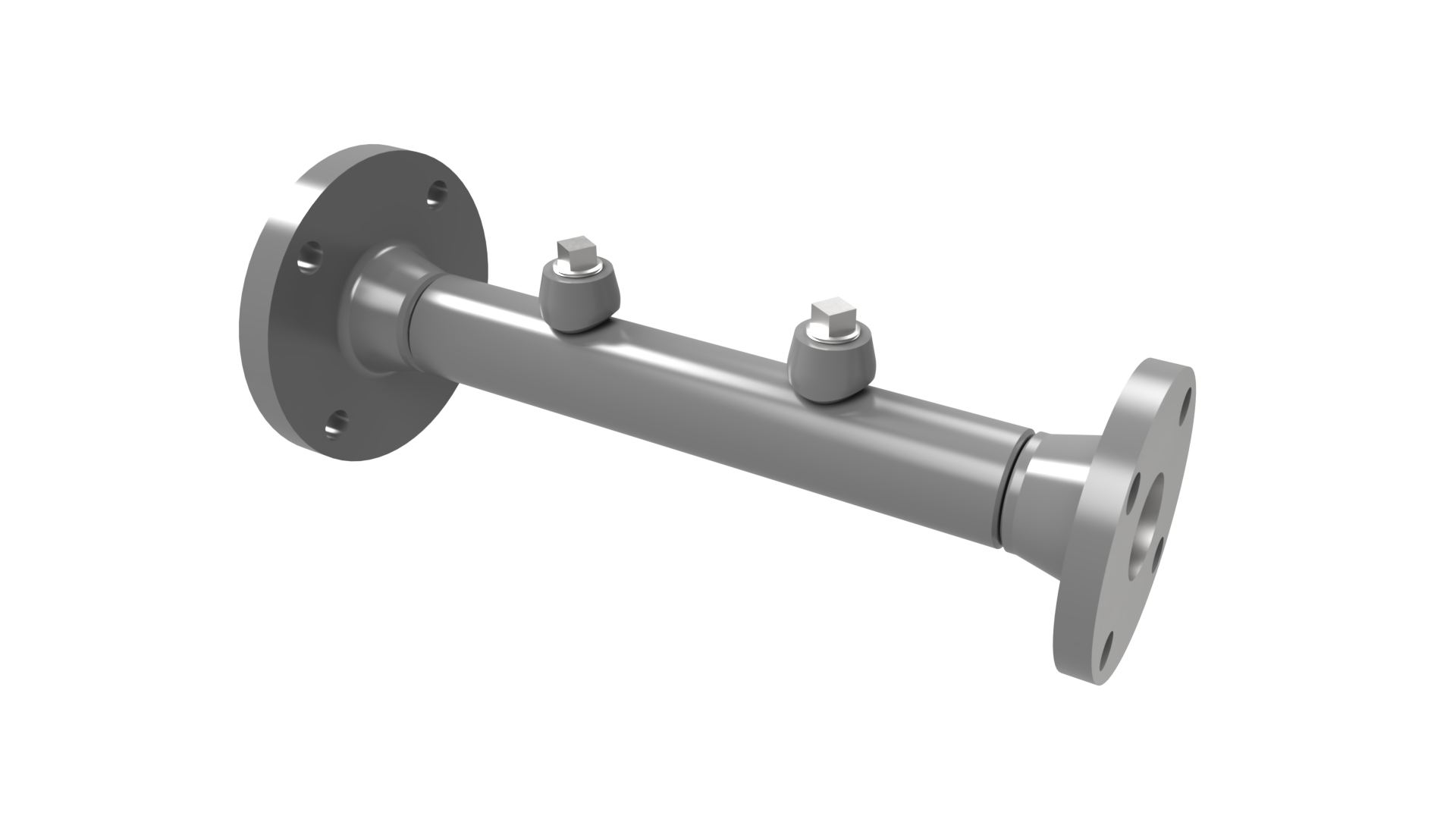

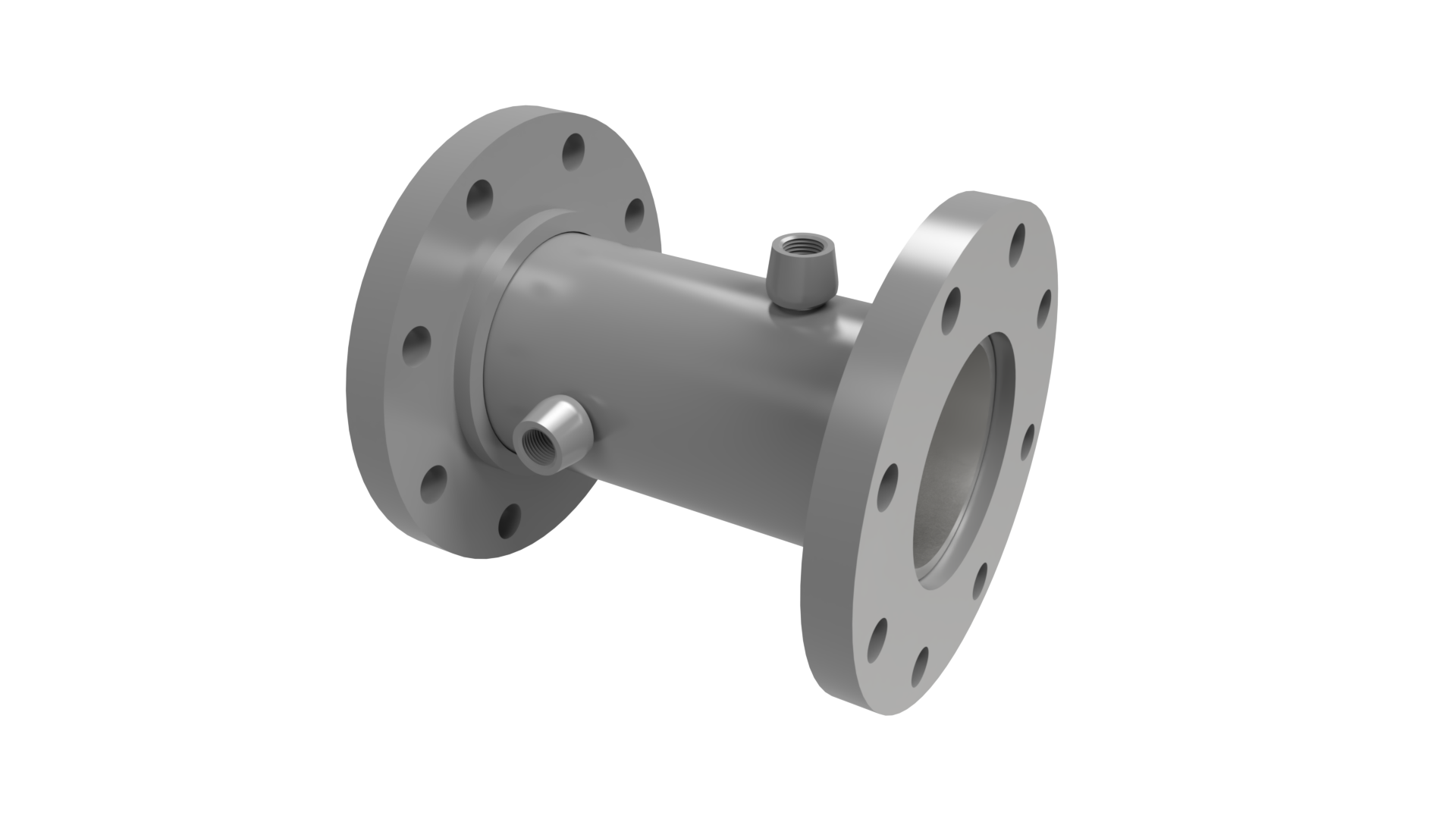

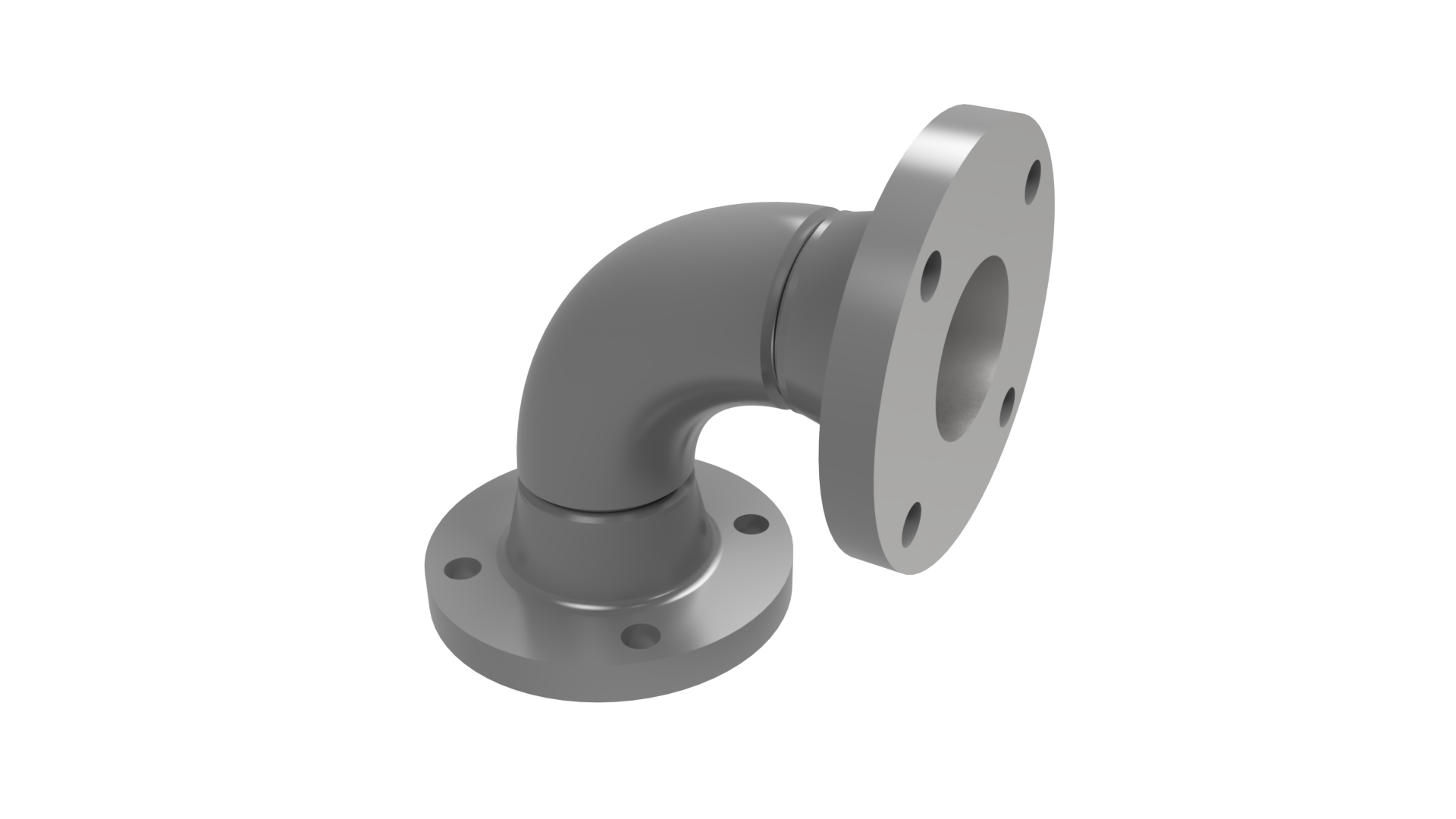

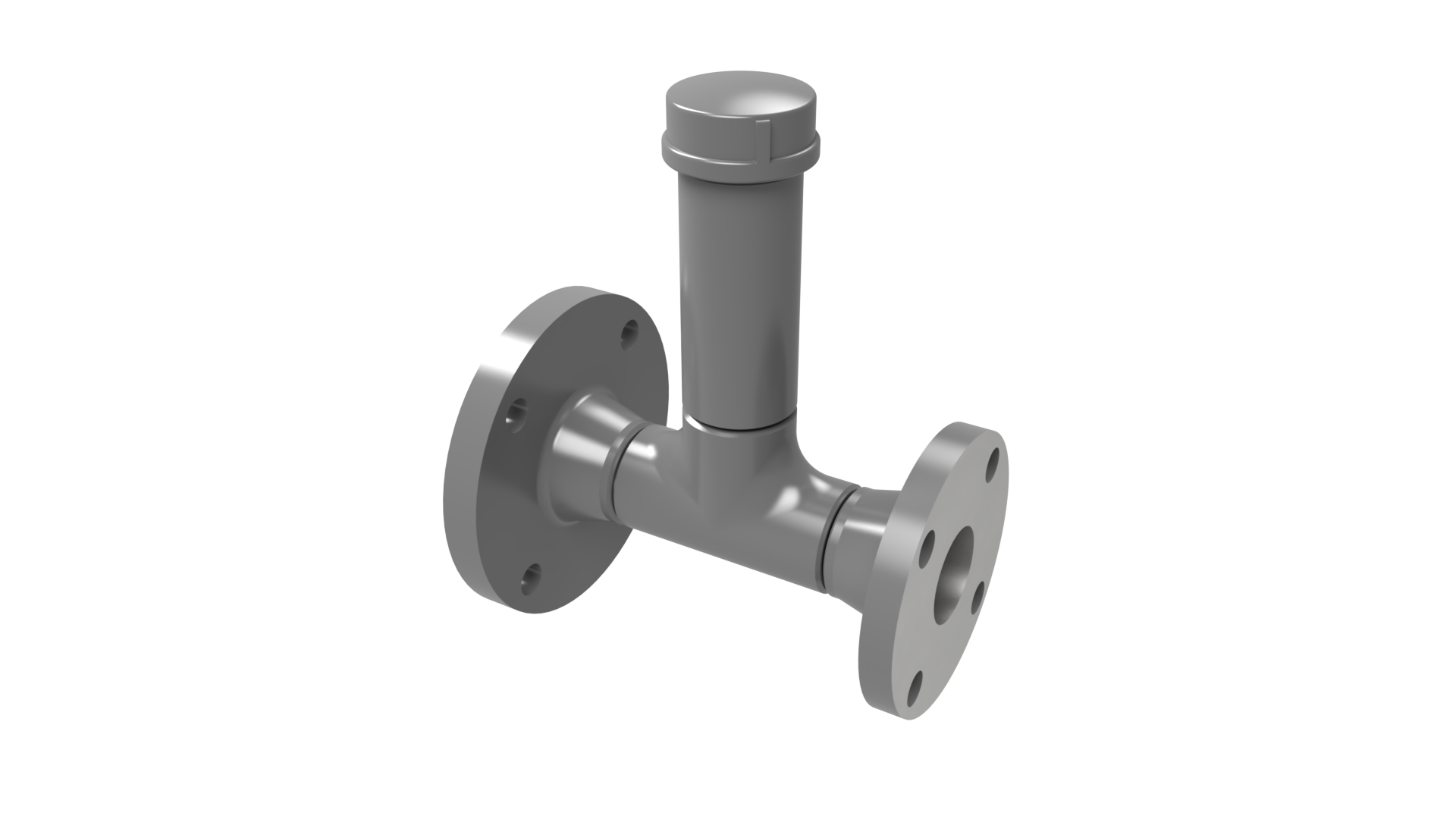

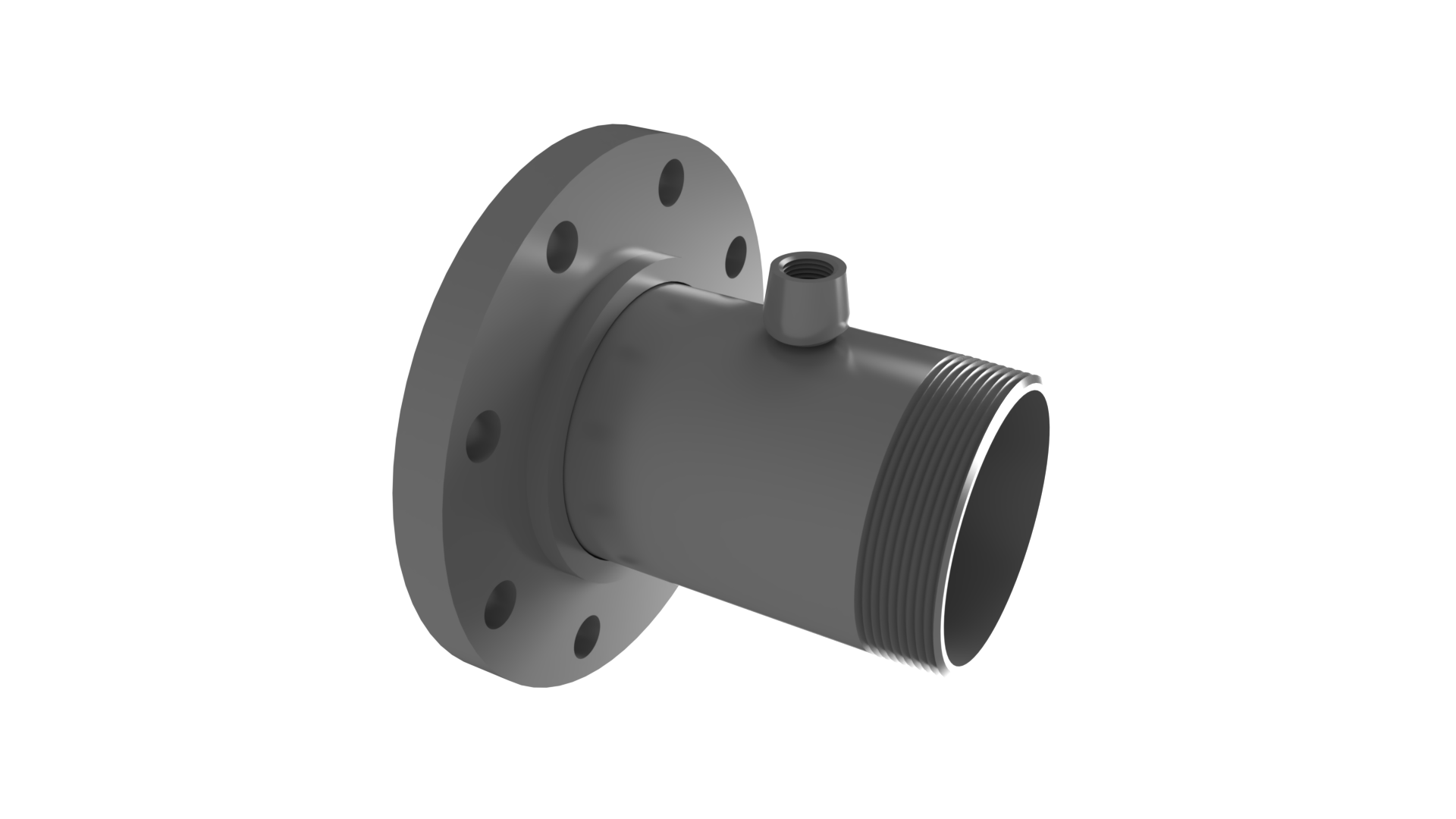

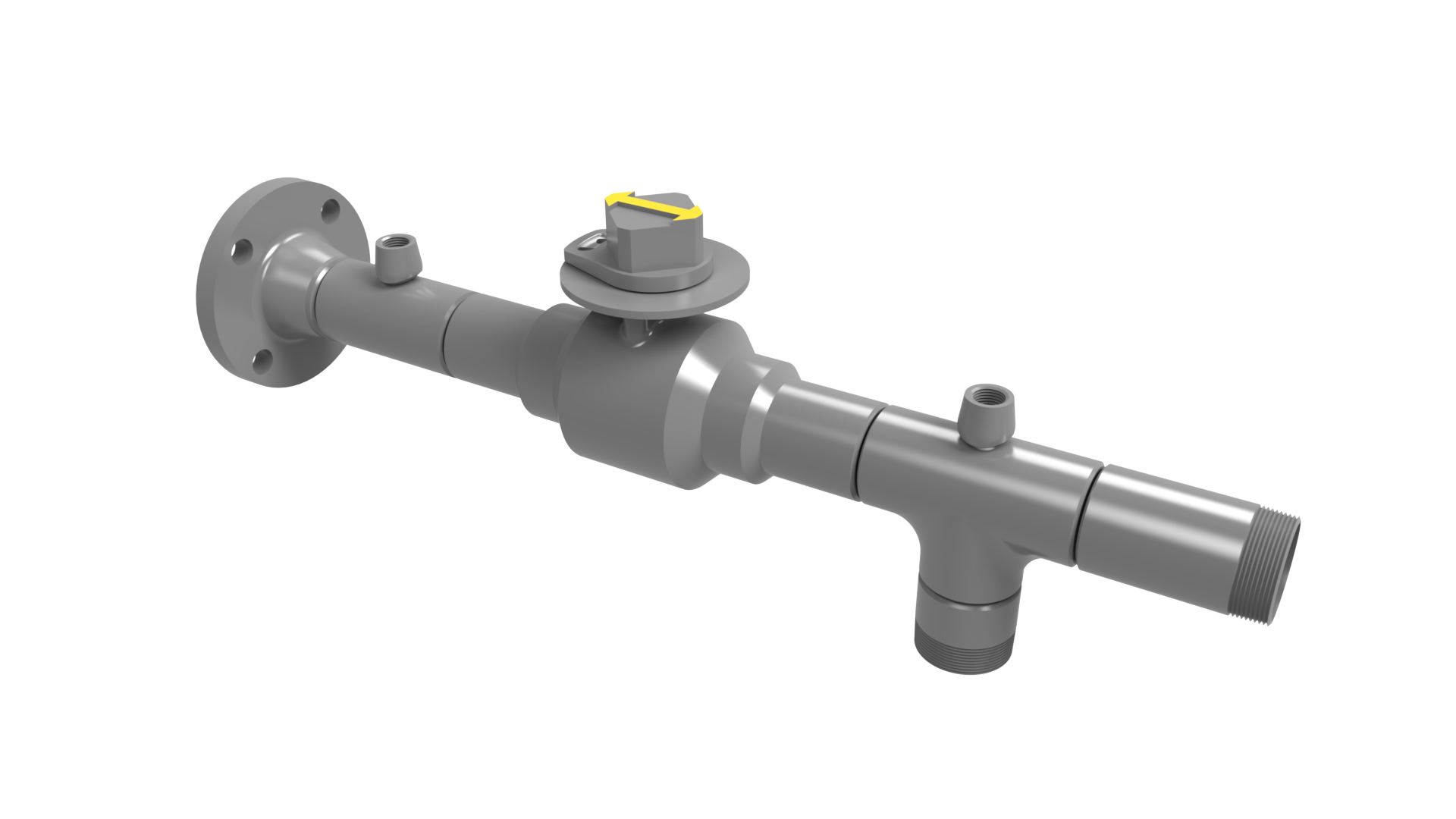

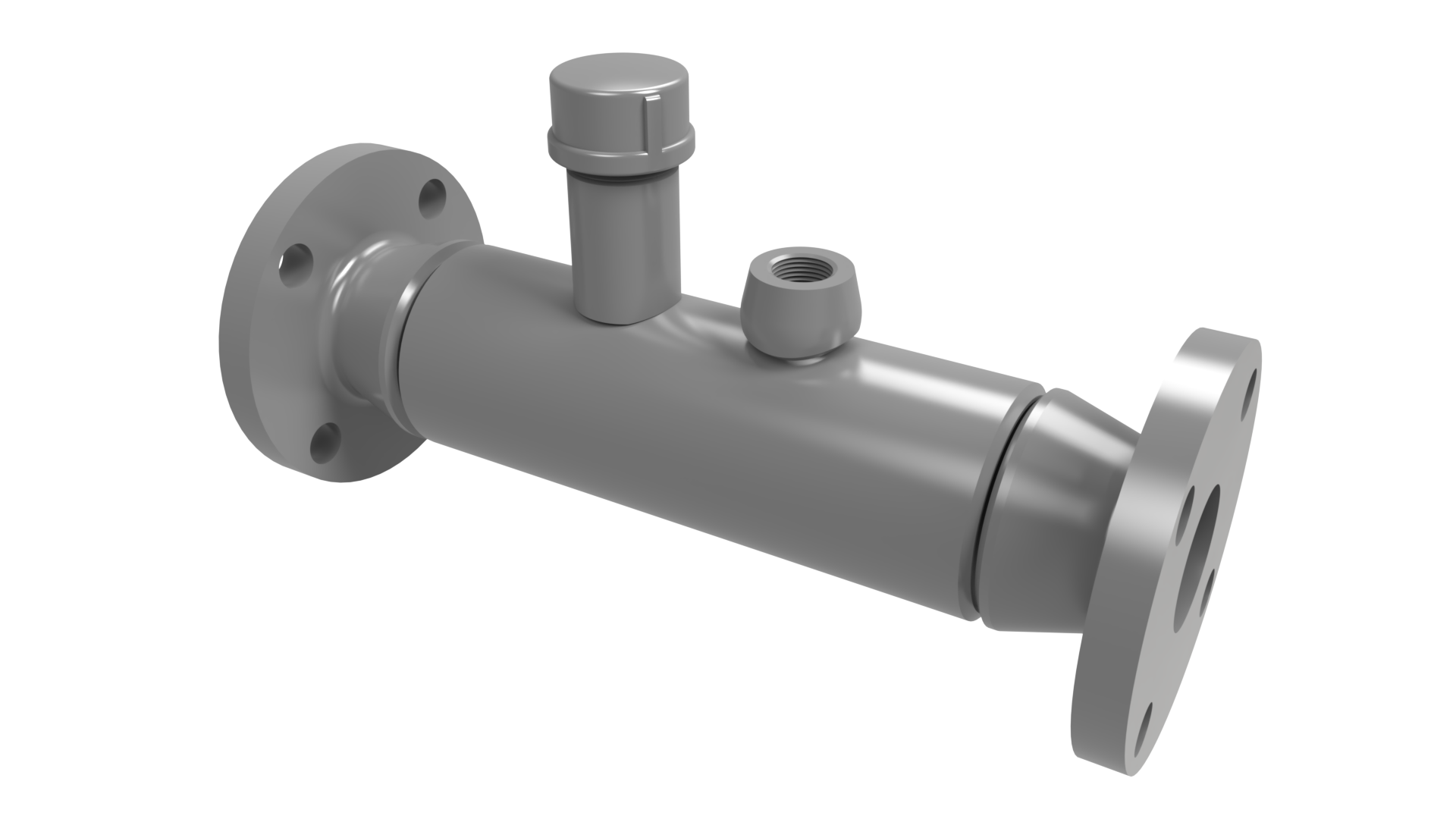

The samples displayed on this page represent just a tiny fraction of the different configurations we currently manufacture. Send us your drawings and specifications and we can set up to produce the parts you need.

General Specifications

  • ASTM A53 Grade A pipe (standard) – other pipe available upon request
  • Sizes from NPS ¾ to NPS 8
  • Weld-neck or slip-on flanges per ASME B16.5
  • Wrought steel fittings per ASME B16.9
  • Thredolets per ASME B16.11
  • Other fittings available upon request
  • Welds 100% leak-tested
  • Multiple coating options available, depending on configuration and customer requirements
    • Polyester powder coating (standard)
    • Zinc plating with polyester powder over coat
    • Three-part liquid paint
    • Zinc plating with three-part liquid paint over coat
